HDD Integrated Drill pipe

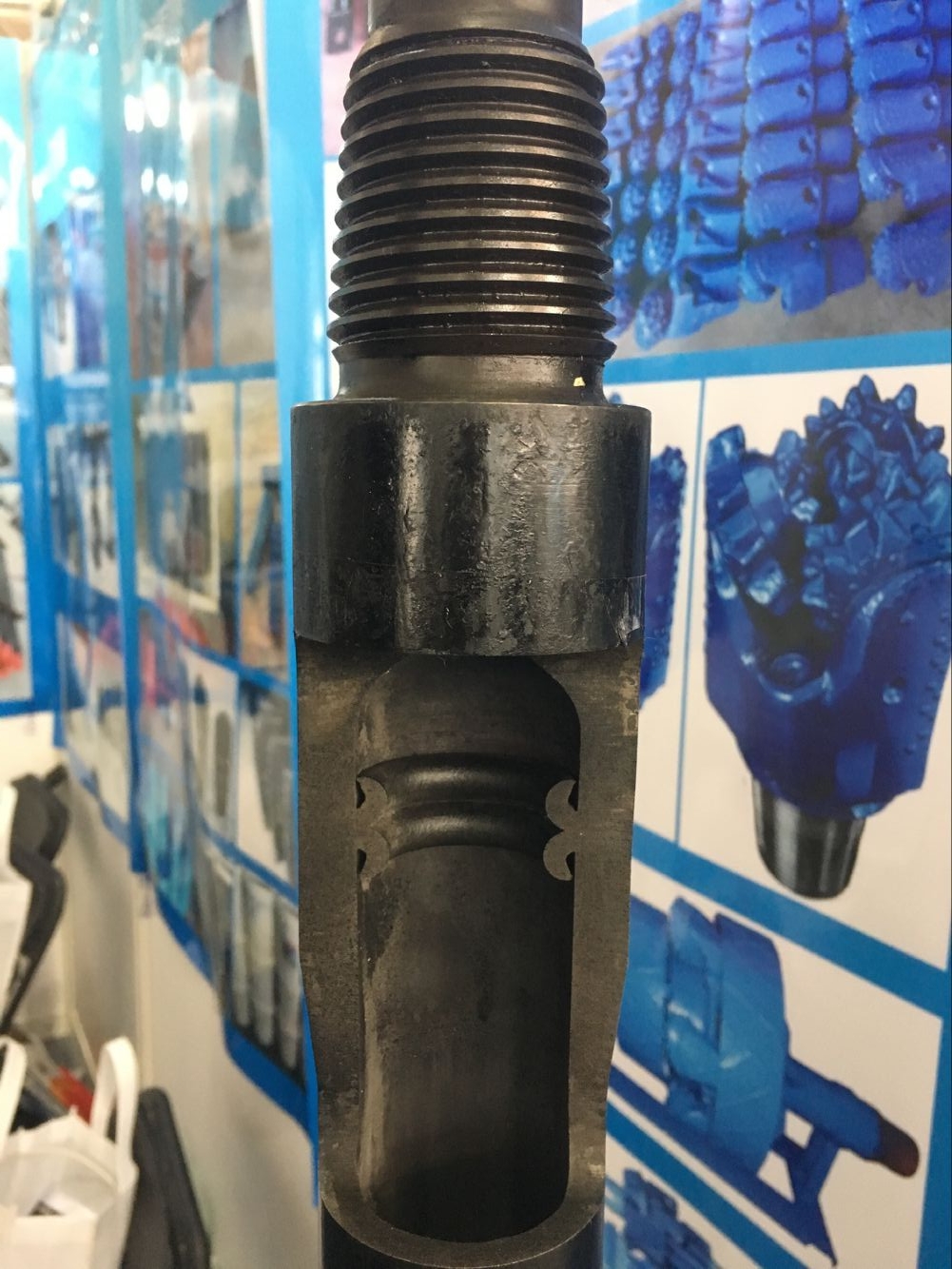

1. HDD Integrated Drill pipe

1. Material selection-with API standard and reliable performance.

2. The twice thickening molding technology of pipe joint makes the transition zone very stable and smooth which tremendously reduce the resistance of mud through the pipe.

3. With National initiative integral drill rod and intermediate-frequency heat treatment technology make this kind of product have the higher Mechanical Properties than the similar products.

4. Be treated by liquid nitrogen treatment process, the joint thread is deeper than the traditional  processing technology which  greatly prolong the service life of products.

Specification:

Drill Pipe Tool Joint Mechanical Property Tool Joint
Size Grade Normal Wall  Upset Thread OD ID Tensile Yield Load Torsion Yield Bend Radius
Weight Thickness Style
lb/ft mm   in mm in mm ft-lb N.M ft-lb N.M ft m
2 G 5.6 6.5 IEU XD50 2 1/8 54 2 1/8 16 871 642 4375 5932 125 38
S IEU XD50 2 1/8 54 2 1/8 16 1120 826 5625 7626 154 32
2 3/8 G 6.65 7.11 IEU XD60 2 3/4 69.8 1 25 1171 864 8751 11865 138 42
S IEU XD60 2 3/4 69.8 1 25 1506 1110 11251 15255 118 36
2 7/8 G 15.5 9.19 IEU NC23 3 1/4 82.6 1 1/8 30 1775 1309 16176 21932 220 67
S IEU NC26 3 3/8 85.7 1 1/8 30 2282 1683 20798 28198 197 60
3 1/2 G 15.5 11.4 IEU NC31 4 1/8 104.8 1 1/2 38 2644 1950 29520 40024 262 80
S IEU NC31 4 1/8 104.8 1 1/2 38 3399 2507 37954 51459 236 72
4 G 15.7 9.65 IEU NC38 5 127 2 1/8 54 2449 2184 36134 48991 394 120
S IEU NC38 5 127 2 1/8 54 3149 2808 46458 62989 360 110

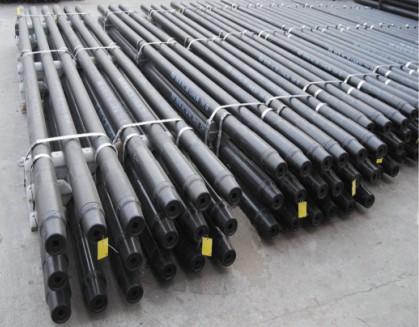

2. HDD Friction Welding Drill PipeThread type and the length of drill pipe can be manufactured according to users’ requirement.

1. Material adopts OCTG

2. Process of End-upsetting can meet the API 5D standard

3. After the heat treatment of thickened pipe, the steel grade can reach G105 or S135.

4. The forging process and heat treatment of the pipe joint can be up to API SPEC7-1 standard.

5. Welding area adopts ausforming process. Performance of welding line can reach the API SPEC 7 standard.

Technical Specification

Drill Pipe Tool Joint Mechanical Property  Tool Joint
Size Grade Normal Wall UpsetStyle Thread OD ID Tensile Yield Load Torsion Yield Bend Radius
Weight Thickness
Lb/ft mm In mm In mm Ft-lb N.M ft-lb N.M ft m
2 E 5.07 6.5 EU XD50 2 1/8 54 2 1/8 16 622 459 3125 4237 164 50
G EU XD50 2 1/8 54 2 1/8 16 871 642 4375 5932 125 38
S EU X50 2 1/8 54 2 1/8 16 1120 826 5625 7626 154 32
2 3/8 E 6.65 7.11 EU XD60 2 3/4 69.8 1 25 836 617 6250 8474 197 60
G EU XD60 2 3/4 69.8 1 25 1171 864 8751 11865 138 42
S EU XD60 2 3/4 69.8 1 25 1506 1110 11251 15255 118 36
2 7/8 E 8.67 7.82 EU NC23 3 1/4 82.6 1 1/8 30 1145 844 9243 12532 239 73
G EU NC23 3 1/4 82.6 1 1/8 30 1602 1181 12941 17546 213 65
S EU NC23 3 1/4 82.6 1 1/8 30 2060 1519 16638 22558 190 58
2 7/8 E 10.4 9.19 EU NC23 3 1/4 82.6 1 1/8 30 1268 935 11554 15665 246 75
G EU NC23 3 1/4 80.6 1 1/8 30 1775 1309 16176 21932 220 67
S EU NC26 3 3/8 85.7 1 1/8 30 2282 1683 20798 28198 197 60
3 1/2 E 13.3 9.35 EU NC31 4 1/8 105 1 1/2 38 1662 1226 18551 25152 295 90
G EU NC31 4 1/8 105 1 1/2 38 2327 1716 25972 35213 246 75
S EU NC38 5 127 2 1/8 54 2992 2207 33392 45273 220 67
3 1/2 E 15.5 11.4 EU NC38 5 127 2 1/8 54 1889 1393 21086 25889 312 95
G EU NC38 5 127 2 1/8 54 2644 1950 29520 40024 262 80
S EU NC38 5 127 2 1/8 54 3399 2507 37954 51459 236 72
4 E 14 8.38 IU NC38 5 127 2 1/8 54 1749 1290 23288 31574 459 140
G IU NC38 5 127 2 1/8 54 2449 1806 32603 44204 394 120
S IU NC38 5 127 2 1/8 54 3149 2323 41918 56833 360 110
4 1/2 E 16.6 8.56 IEU NC38 5 127 2 1/8 54 1974 1456 30807 41769 558 170
G IEU NC38 5 127 2 1/8 54 2764 2039 43130 58476 492 150
S IEU NC40 5 1/2 139.7 2 1/4 57 3553 2621 55453 75184 459 140
5 E 19.5 9.19 IEU NC50 6 5/8 168.3 3 3/4 95.2 2457 1812 41167 55815 623 190
G IEU NC50 6 5/8 168.3 3 1/4 82.6 3440 2537 57633 78140 574 175
S IEU NC50 6 5/8 168.3 2 3/4 69.8 4423 3262 74100 100466 525 160
5 1/2 E 24.7 10.54 IEU 5 1/2FH 7 1/4 184.2 3 1/2 101.6 3122 2303 50710 68754 689 210
G IEU 5 1/2FH 7 1/4 184.2 3 1/2 88.9 4372 3225 70994 96255 623 190
S IEU 5 1/2FH 7 1/2 190.5 3 76.2 5622 4146 91278 123756 590 180
6 5/8 E 27.7 9.19 IEU 6 5/8FH 8 203.2 5 127 3314 2444 76295 103442 787 240
G IEU 6 5/8FH 8 1/4 209.6 4 3/4 120.7 4640 3422 106813 144819 722 220
S IEU 6 5/8FH 8 1/2 215.9 4 1/4 7.95 5966 4400 137330 186194 656 200
